Flat Wire Coil Magnetically Crossover Inductor MTP2918S-100K

Product Detail

Product Tags

1. MODEL NO: MTP2918S-100K

2. Size: please see the details as below

CUSTOMER	MODEL NO.	MTP2918S-100K	REVISION		A/0
FILE NO.	PART NO.		DATE		2022.07.13

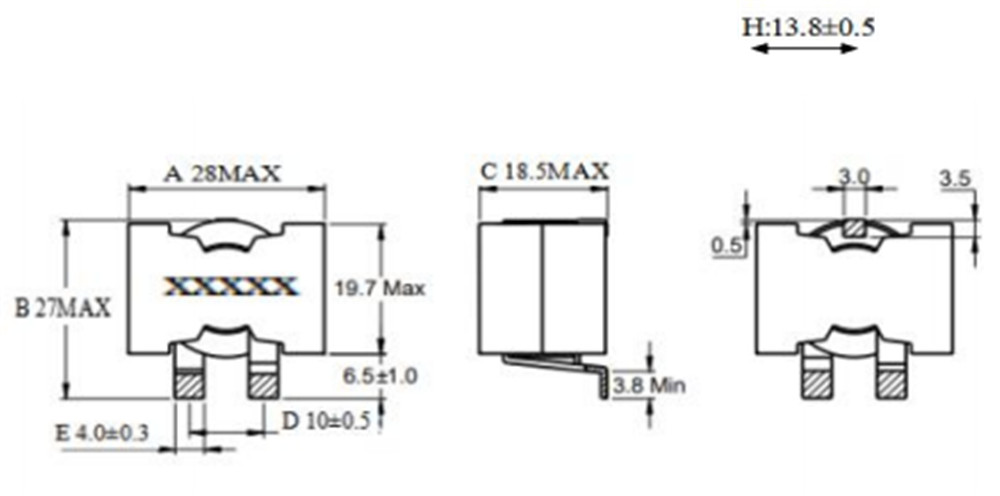

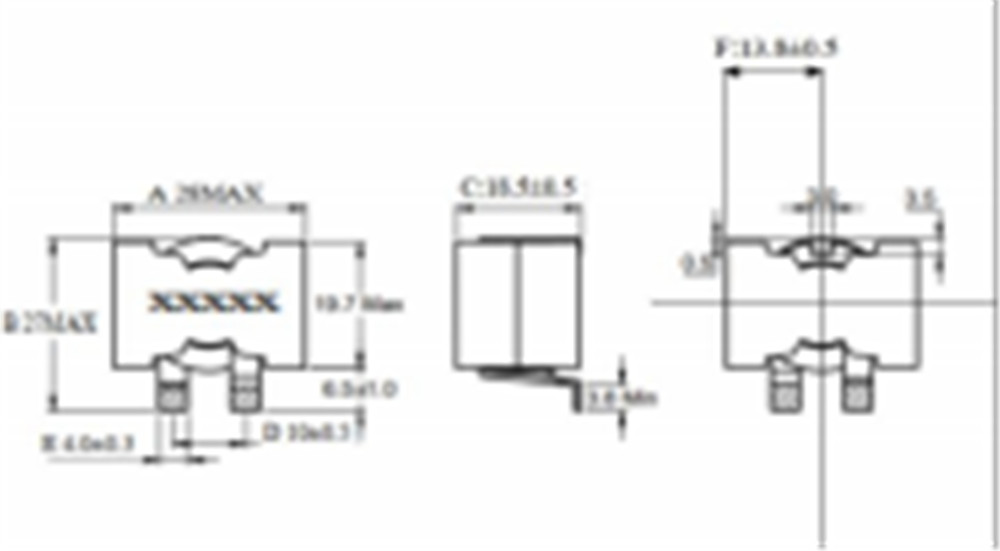

1.PRODUCT DIMENSION				UNIT:mm
F:13.8±0.5				A	28MAX
				B	27MAX
				C	18.5±0.5
				D	10±0.5
				E	4.0±0.3
				F	13.8±0.5

2. ELECTRICAL REQUIREMENTS

PARAMETER	SPECIFICATION	CONDITION	TEST INSTRUMENTS
L(uH)	10± 10%	100KHz0.3	MICROTEST 6377
DCR(mΩ)	2.5MAX	At 25℃	TH2512A
I sat(A)	31A TYP L0A*70%	100KHz0.3	MICROTEST 6377+6220
I rms(A)	30A TYP △T≤40℃	100KHz0.3	MICROTEST 6377+6220

3. MATERIAL LIST

ITEM	MATERIAL	SUPPLIER
CORE	DR:27197.5*B12	SHANGPENG/DONGYANGGUANG/TIA NTONG
WIRE	1.04.07.75TS)	TAIYI-JIATENG-SONGYE
SOLDER	TIN-Sn99.95	QIANDAO/HONGXINGWEI

4. CHARACTERISTICS

(1). All test data is based on 25℃ ambient.

(2). DC current(A)that will cause an approximate △T40℃

(3). DC current(A)that will cause L0 to drop approximately 30%Typ

(4). Operating temperature range: -40℃~+125℃

(5). The part temperature (ambient + temp rise)should not exceed 125℃ under worst case operating conditions. circuit design, component.PWB trace size and thickness,airflow and other coolin provision all affect the part temperature. Part temperature should be verified in the den application

Special Request

(1) Lettering 100 on top of the body.

(2) your special request can be printed as well

CUSTOMER			MODEL NO.		MTP2918S-100K		REVISION	A/0
FILE NO.			PART NO.				DATE	2022.07.13
SORT	ITEM	A	B	C	D	E	F
PRODUCT& DIMENSION	SPEC	28MAX	27MAX	18.5±0.5	10±0.5	4.0±0.3	13.8±0.5
	1	27.20	25.56	18.49	10.32	4.01	13.68
	2	27.30	25.46	18.56	10.26	4.00	13.69
	3	27.20	25.59	18.57	10.24	4.02	13.64
	4	27.25	25.57	18.58	10.16	4.01	13.63
	5	27.30	25.65	18.65	10.24	4.02	13.69
	X	27.25	25.57	18.57	10.24	4.01	13.67
	R	0.10	0.19	0.16	0.16	0.02	0.06
ELECTRICAL& REQUIREMENTS	ITEM	L(μH)	DCR( mΩ)	I sat(A)	DC BIAS	Irms	SHAPE:
ELECTRICAL& REQUIREMENTS	SPEC	10± 10%	2.5MAX	31A TYP L0A*70%		30A TYP △T≤40℃

Application

1. Digital Products:Digital camera ETC
2.Household Appliance:washing machine,air condition,coffee makerETC
3. Security products:Camera,Voice recording equipment,infrared devicesETC
4.Power:Switching power supply, UPS ETC
5.Lighting industrial: LED drivers
6.Auto electronics: Navigator,Data recorder, Car charger ETC
7.Toys:electric toys, remote controller ETC
8.Motors

Flat Wire Coil Magnetically Crossover Inductor -01 (2)

Features

5Years warranty

High current High power High efficiency

Low temperature rise

Stable performance

Packaging

40pcs/tray, 280pcs /bundle, 1 bundle (280ps ) /ctn ,your special packing demand is acceptable.

Flat Wire Coil Magnetically Crossover Inductor -01 (6)

Quantity/Tray:40PCS

Flat Wire Coil Magnetically Crossover Inductor -01 (7)

Flat Wire Coil Magnetically Crossover Inductor -01 (3)

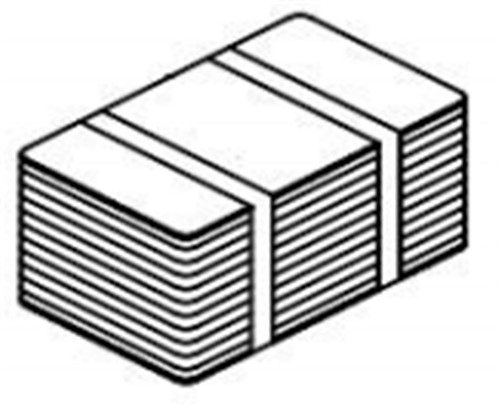

Quantity/Bundle:280PCS

Flat Wire Coil Magnetically Crossover Inductor -01 (4)

Flat Wire Coil Magnetically Crossover Inductor -01 (5)

Quantity/Bundle:280PCS

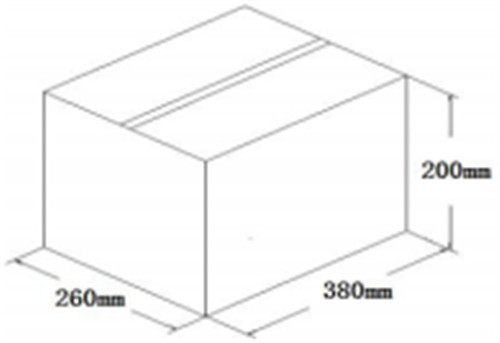

Quantity/Carton:280PCS

Trade Terms

1. Payment:
1) T/T 30% in advance, balanced 70% to be paid before dispatch.
2) L/C.
2. Port of loading: Shenzhen or Hongkong Port.
3. Discounts: offered based on order quantities.
4. Delivery time: 7-30 days according to order quantities.

Sales manager giving advice application form document, considering mortgage loan offer for car and house insurance

Shipment

We ship goods by DHL, UPS, FEDEX, SF, EMS and TNT.
Sample Lead Time is about 3-7 days
Order Lead Time is about 20-30 days.
(If there are products in stock, we can deliver at once after receiving payment.)
