1. MODEL NO: MT953-102Y-2P-P5-L-X-X

2. Size: please see the details as below

CUSTOMER MODEL NO. MT953-102Y-2P-P5- L-X-X REVISION A/1
FILE NO. PART NO.   DATE 2022.02.16

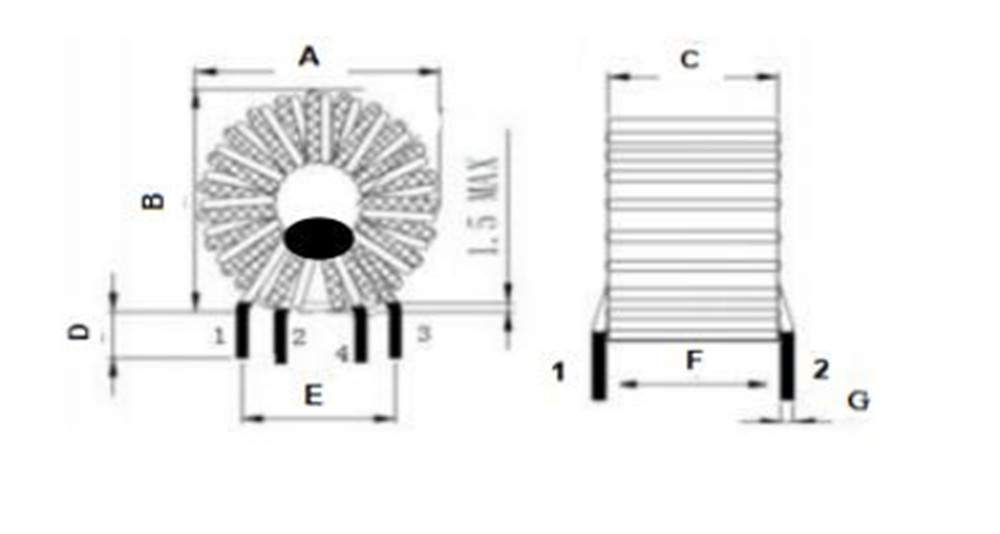

1.PRODUCT DIMENSION UNIT:mm
customized high current toroidal power inductor Circular Inductor-01 (4) A 13.0Max
B 11.0Max
C 6.0Max
D 5.0±1.0
E 5.0Ref
F 4.0Ref
G 0.35±0.05

2. ELECTRICAL REQUIREMENTS

PARAMETER SPECIFICATION CONDITION TEST INSTRUMENTS
L(mH) 1mH MIN 1KHz/0.3V MICROTEST 6377
DCR(mΩ) 45mΩMAX At 25℃ TH2512A

3. MATERIAL LIST

ITEM MATERIAL SUPPLIER
CORE T 953 AL:>6.0 TENG CI
WIRE 2UEW / TEX-E  0.35*2P*13.5 TS Ref TAI YI
SOLDER TIN-Sn99.95 QIAN DAO

Application

(1) Power supplies, Switching circuits.

(2) EMI/RFI chokes.

(3) SCR and triac controls

customized high current toroidal power inductor Circular Inductor-01 (1)

Features

(1) Cost effective design.

(2) ultra high current rating.

SORT ITEM A B C D E F G
PRODUCT& DIMENSION SPEC 13.0Max 11.0Max 6.0Max 5.0±1.0 5.0Ref 4.0Ref 0.35±0.05
1 10.64 9.82 4.80 4.76 4.97 4.05 0.34
2 10.58 9.58 4.79 5.05 5.02 4.01 0.35
3 10.34 9.60 4.82 5.10 5.12 3.98 0.33
4 10.52 9.71 4.68 5.00 4.94 3.89 0.34
5 10.50 9.80 4.65 4.98 4.89 4.10 0.35
X 10.52 9.70 4.75 4.98 4.99 4.01 0.34
R 0.30 0.24 0.17 0.34 0.23 0.21 0.02
ELECTRICAL& REQUIREME

NTS

ITEM L(mH) DCR(mΩ) SHAPE:

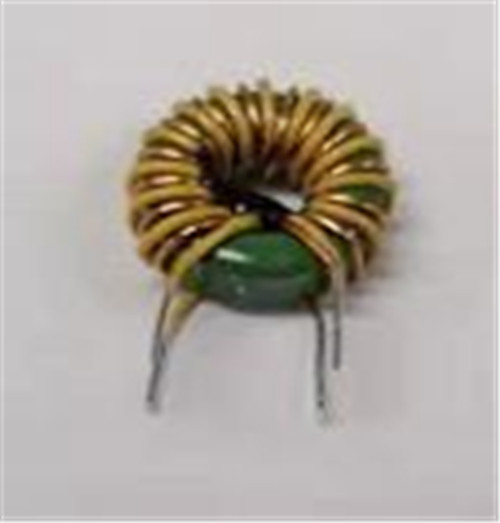

SPEC 1mH MIN 45mΩMAX  customized high current toroidal power inductor Circular Inductor-01 (5)

Packaging Details

1. 300pcs/polybag ,90000pcs/ctn

2. the outside box specification: 370*370*165mm;

3. Customized Packaging is available.
